Models HTK611 series HTK6110Y
Basic parameters Length x Width x Height (mm) 10995×2480×3540
Wheelbase (mm) 5600
Body structure Full load
Curb weight (kg) 11800
Maximum total mass (kg) 17500
Rated passenger capacity 45+1
Suspension type Airbag suspension
Tire specification 295/80R22.5
Vehicle performance parameters Motor ISDE270-50
Fuel tank (L) 200
Gearbox Manual, 6 gears
Clutch 430, diaphragm
Retarder Hydraulic retarder
Maximum speed(km/h) ≥100
Minimum turning diameter (m) ≤22

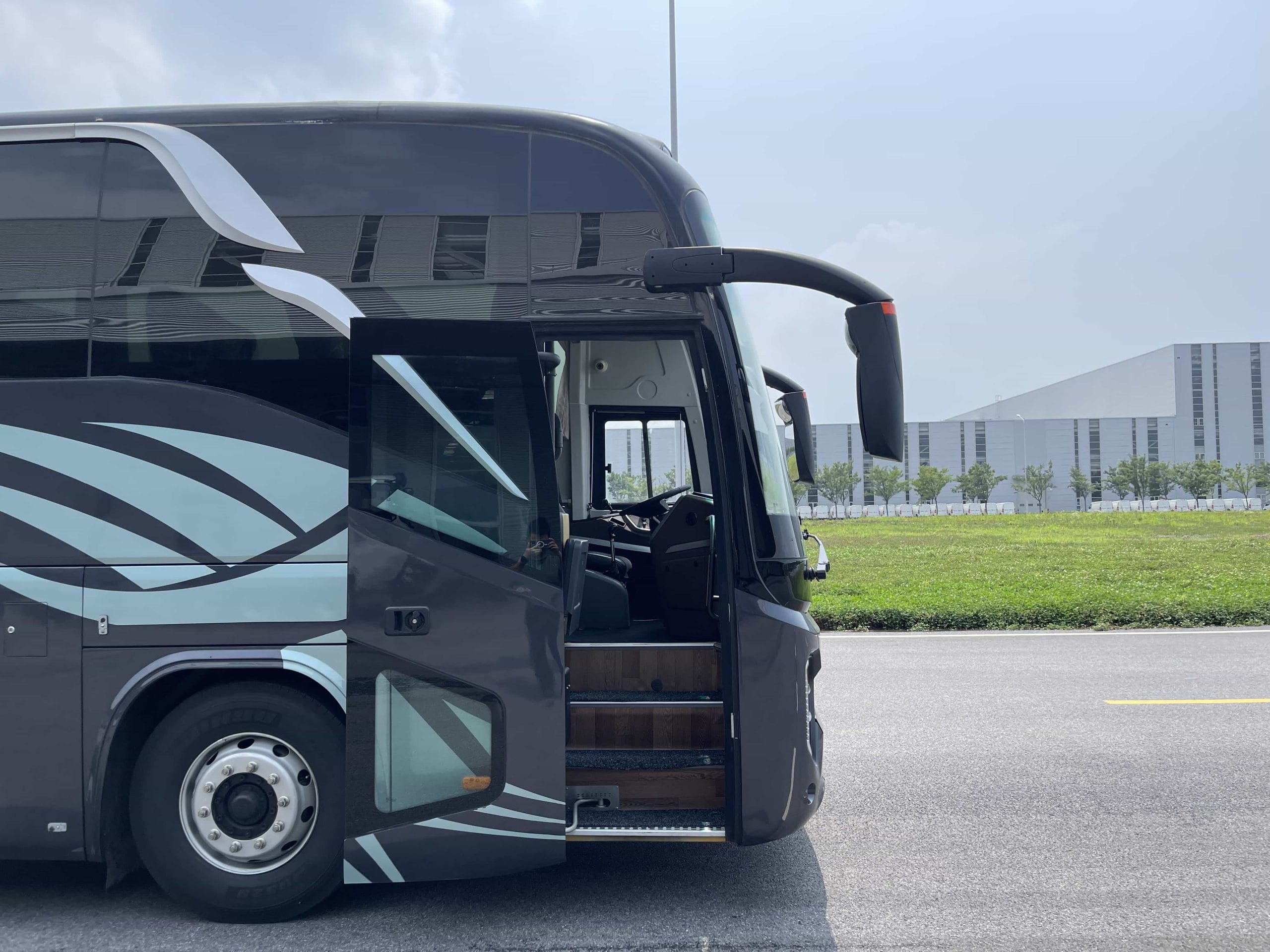

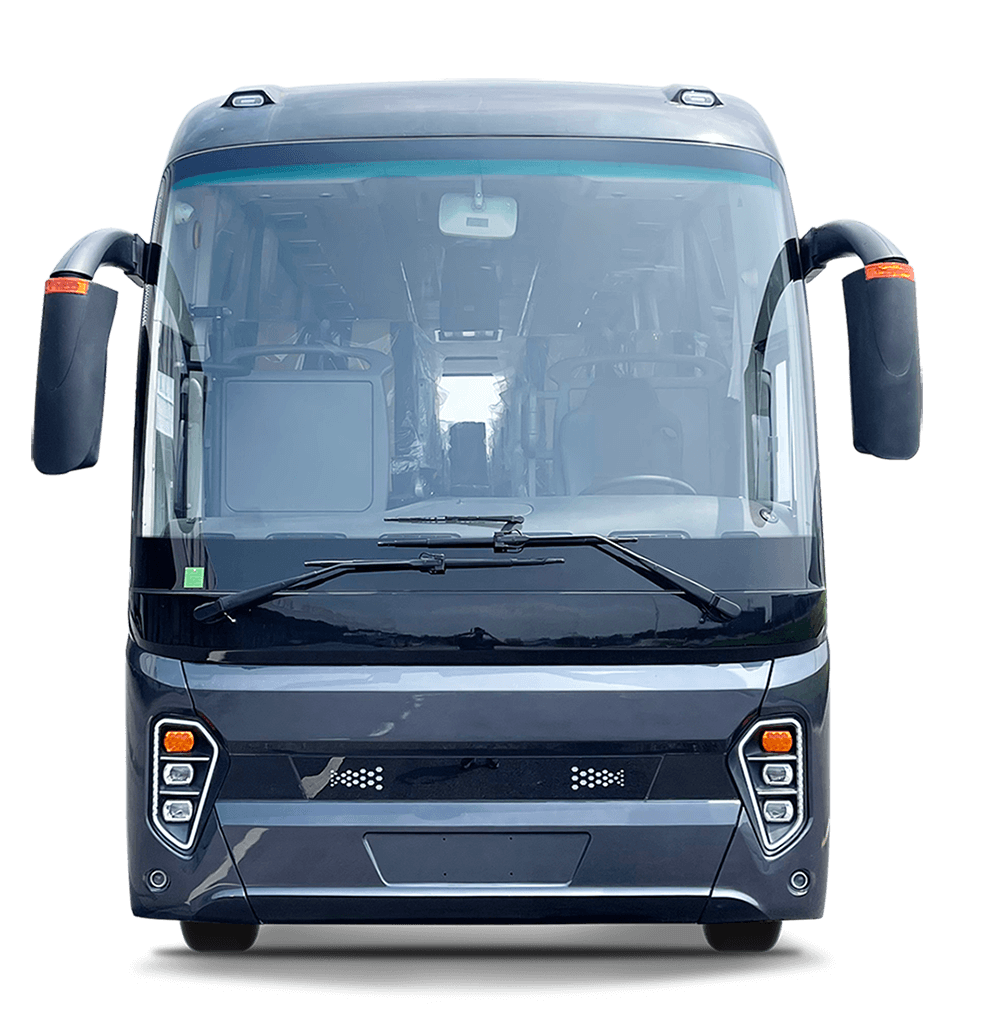

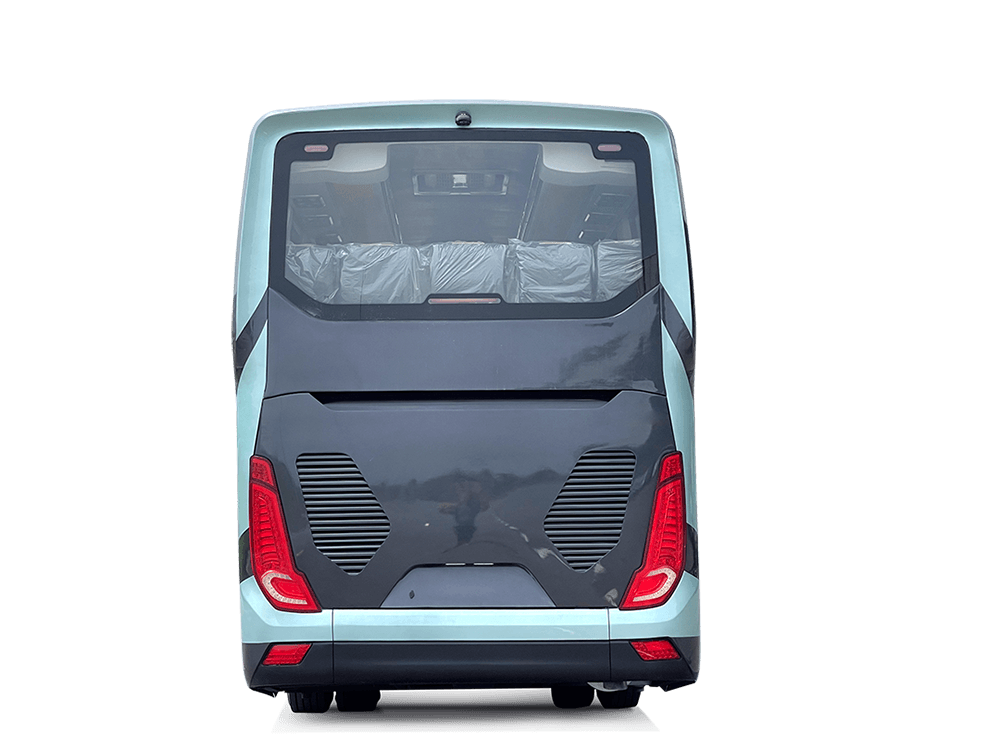

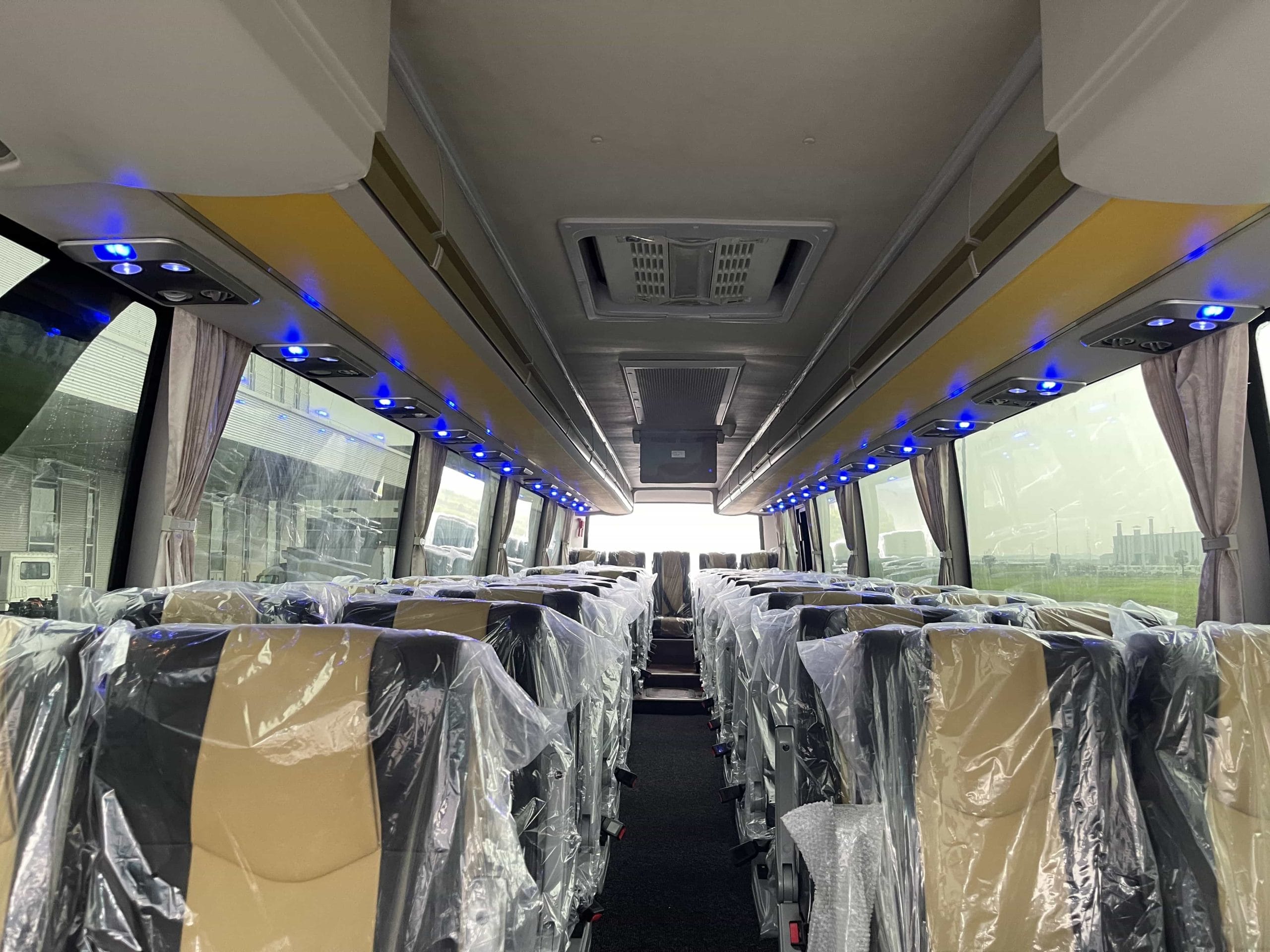

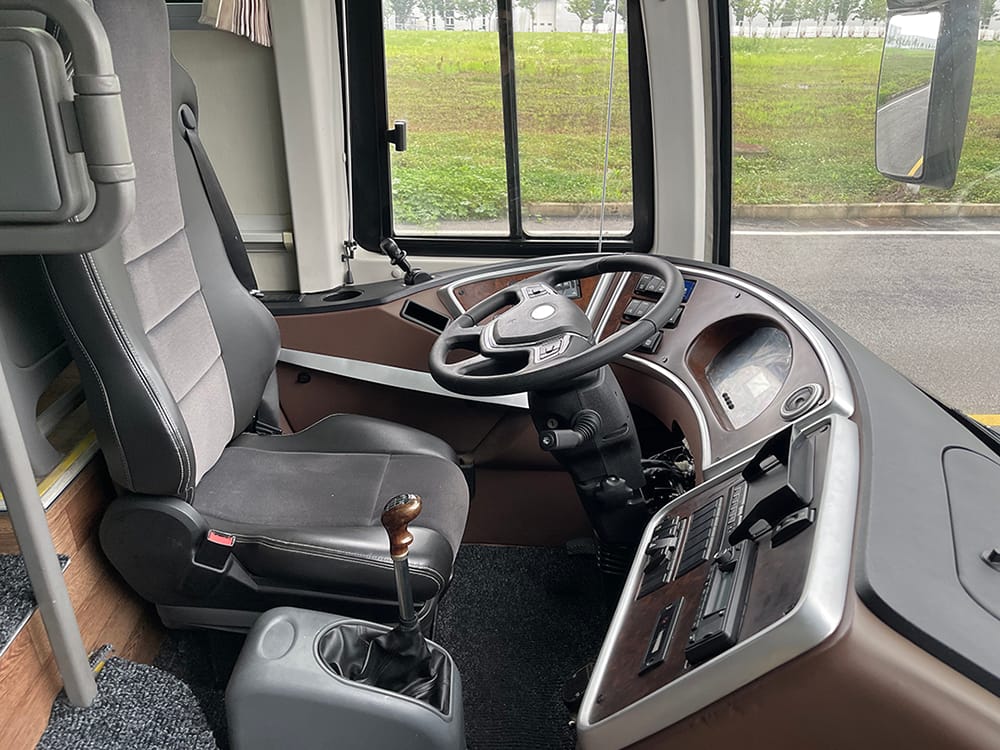

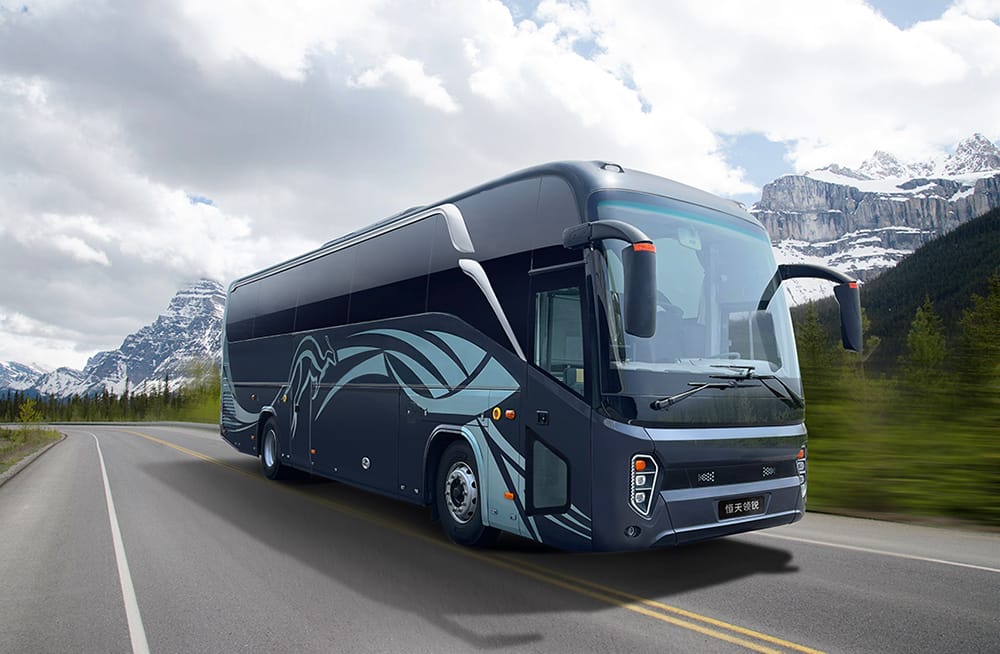

HTK6110Y

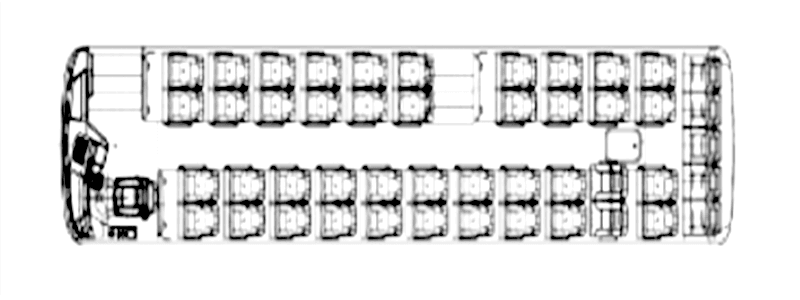

Seat layout diagram
Special announcement There is a conversion period due to the vehicle update and network display, the page graphic parameters may be different from the actual car, the page graphic content does not serve as the basis for the actual booking of the car, the specific models and technical parameters to determine the actual vehicle configuration shall prevail, the intended buyer please contact the Hangtian Lingrui sales staff to confirm in a timely manner, the Hangtian Lingrui to reserve the right to change the parameters of the pictures and the right of final interpretation.
