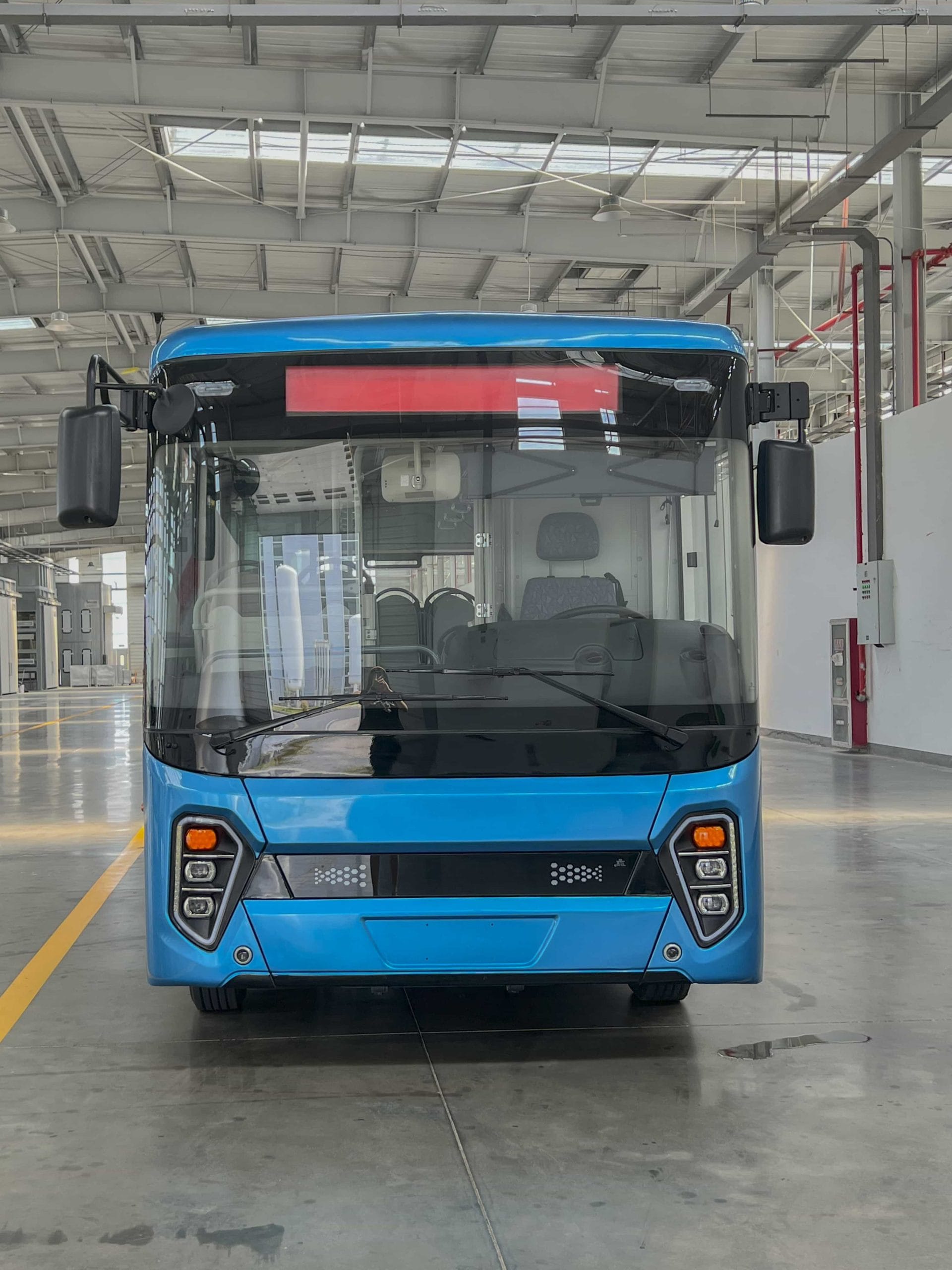

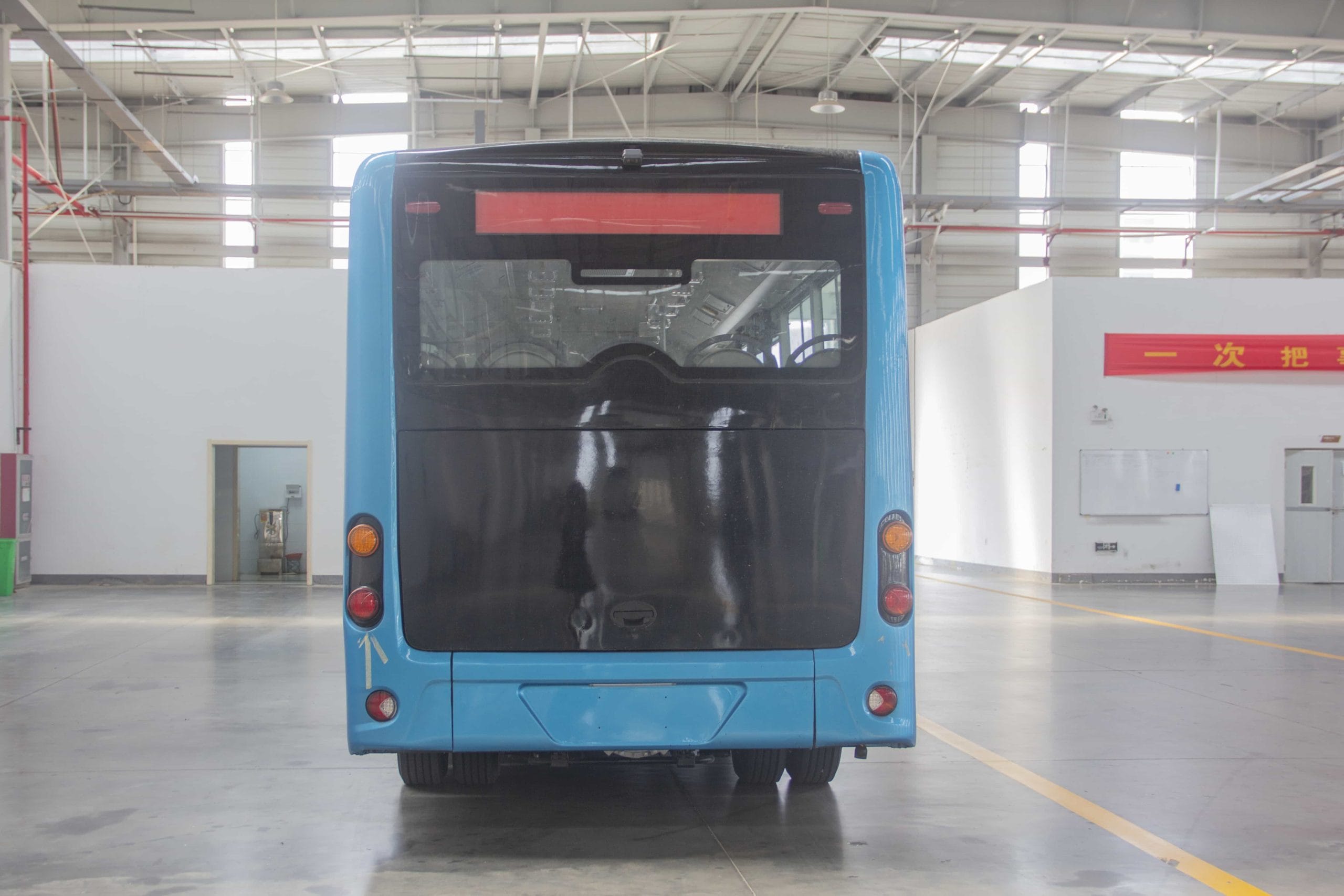

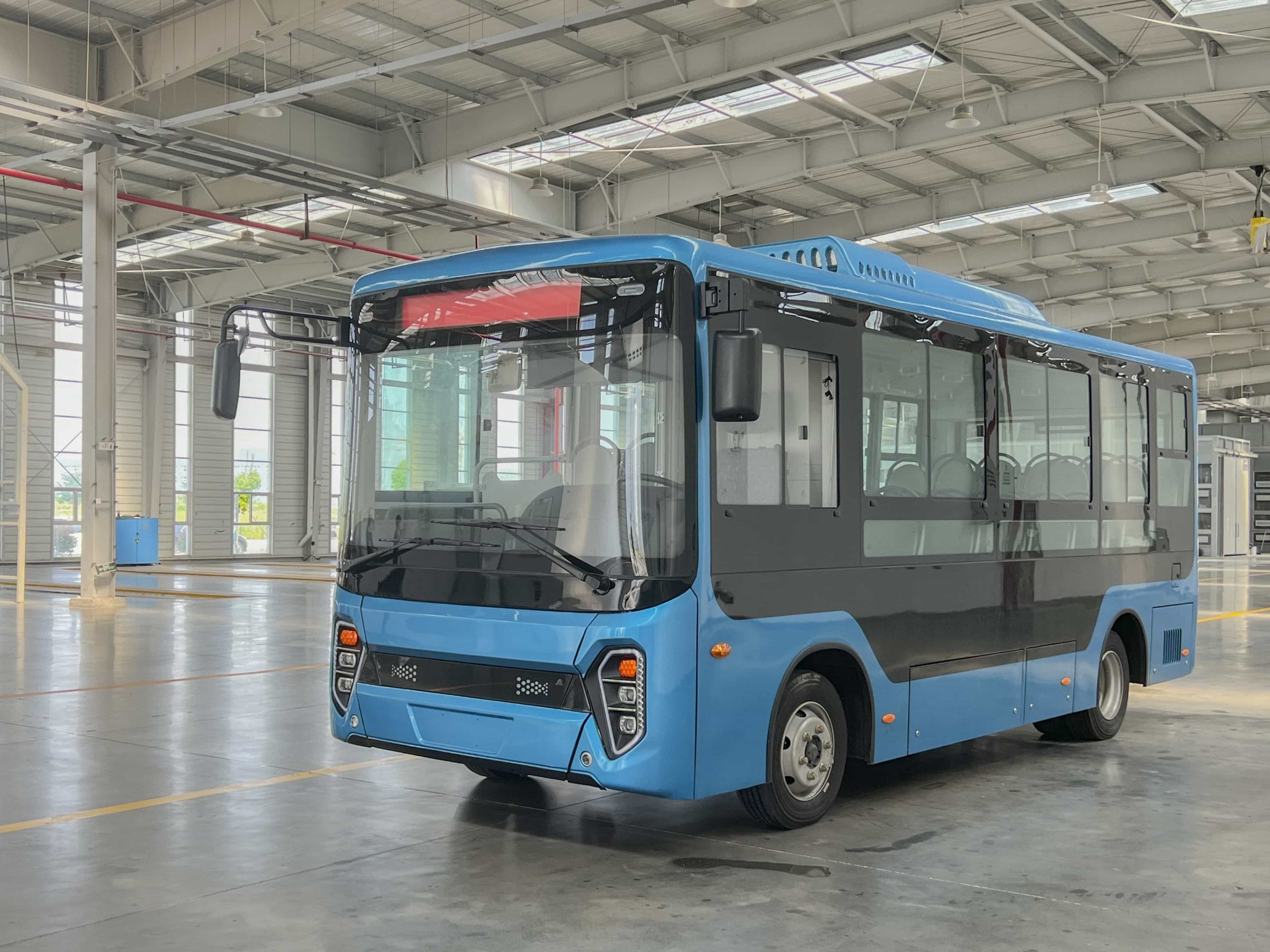

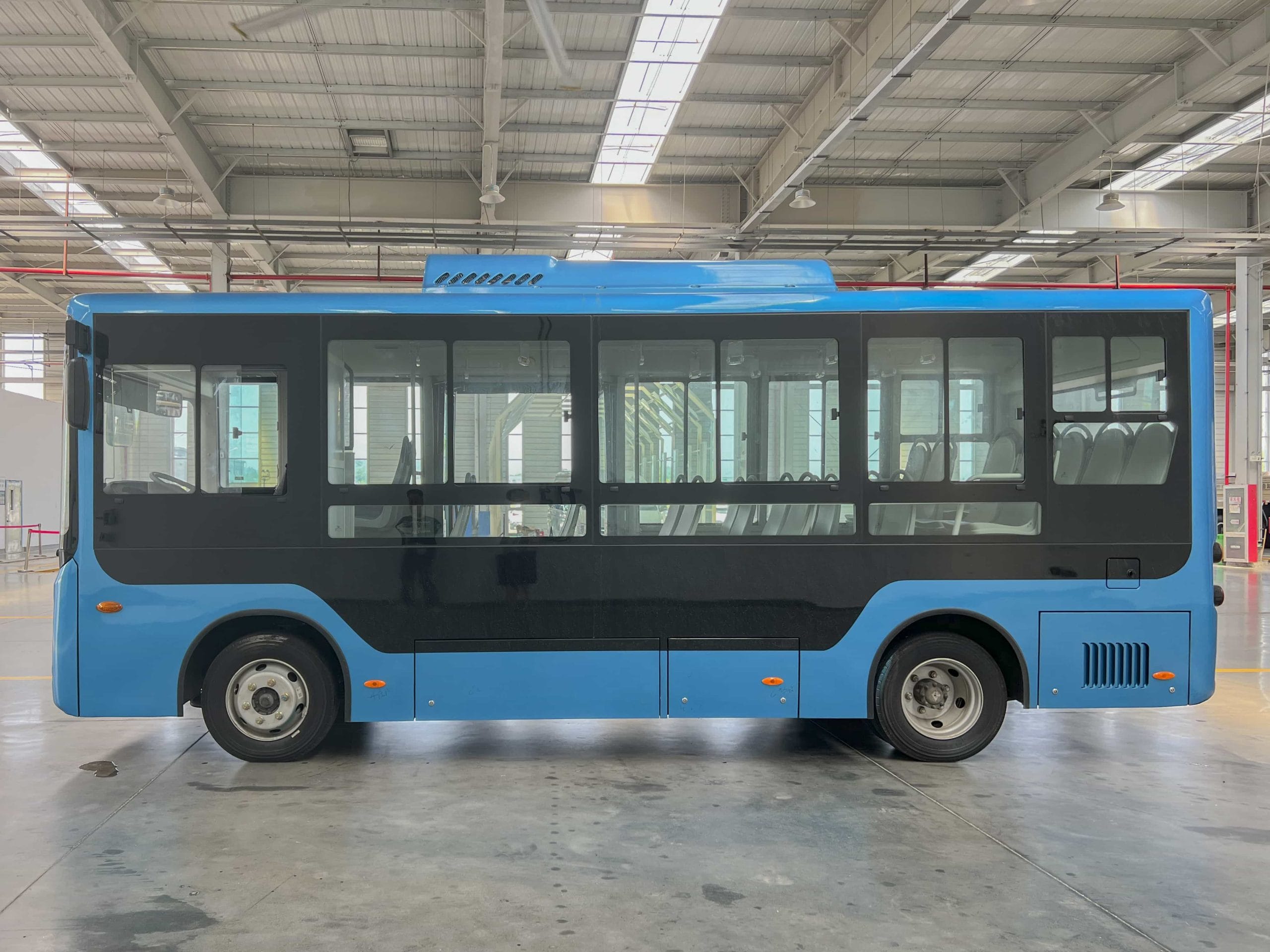

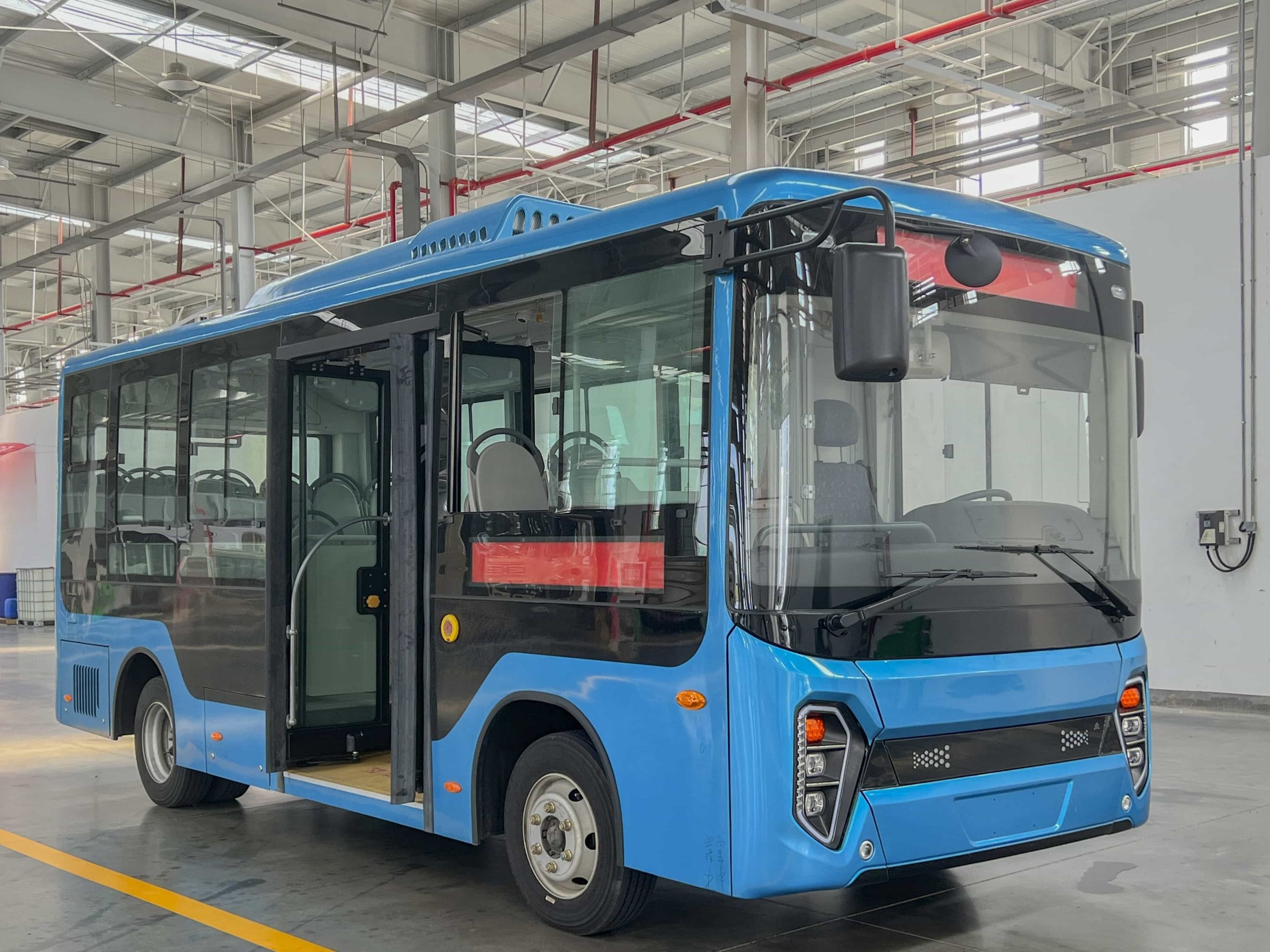

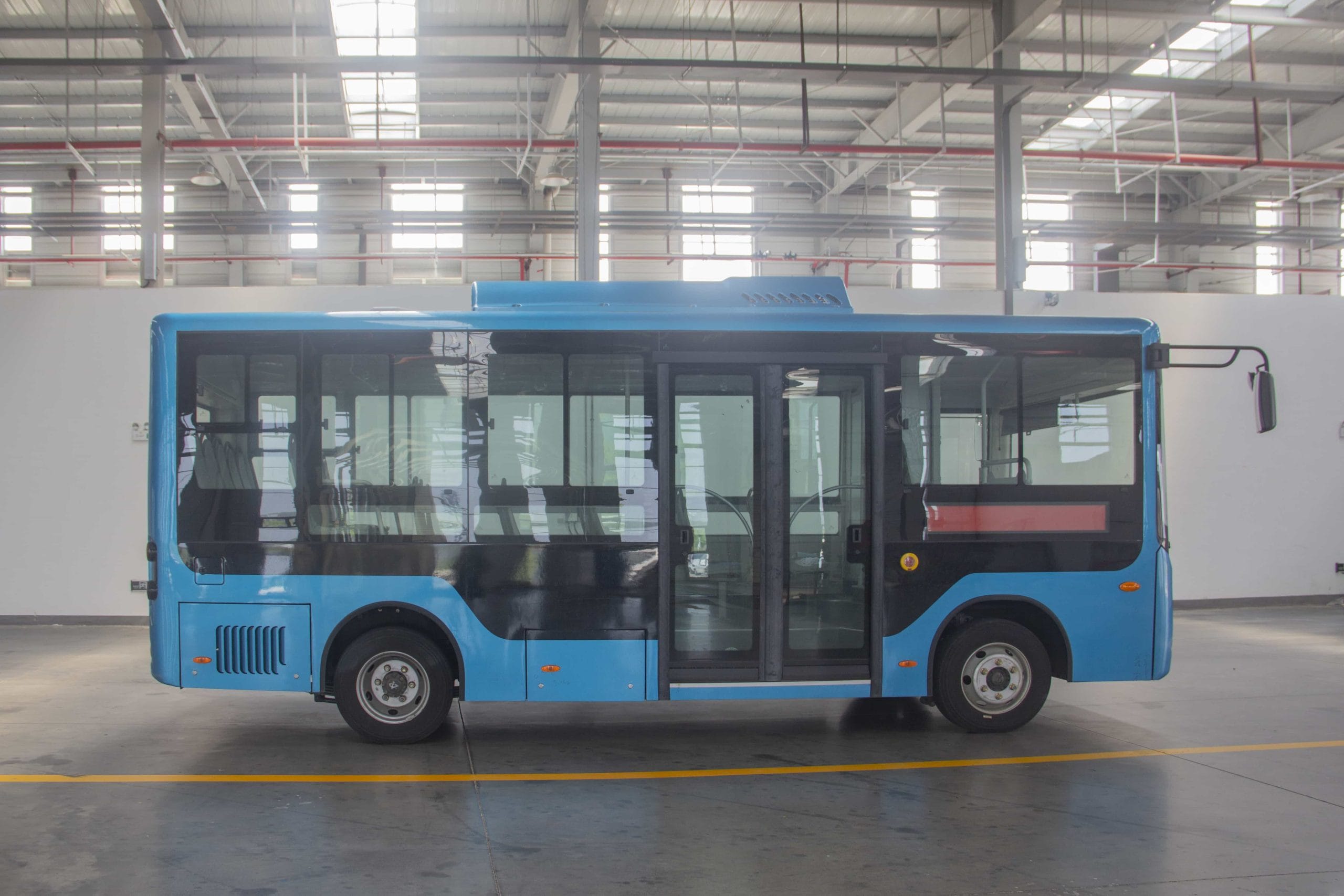

Models HTK668 series HTK6681GBEV
Basic parameters Length×W×H(mm) 6795×2250×2985
Wheelbase (mm) 3850
Body structure Full load
Curb weight (kg) 5900,5700
Maximum total mass (kg) 9500
Rated capacity 46/12-26
Suspension form Leaf spring suspension
Tire specifications 215/75R17.5
Vehicle performance parameters Battery capacity (kWh) 105, water-cooled, CATL
Drive motor power (kW) 80/150
Maximum speed(km/h) 69
Minimum turning diameter (m) ≤15
HTK6681GEBV

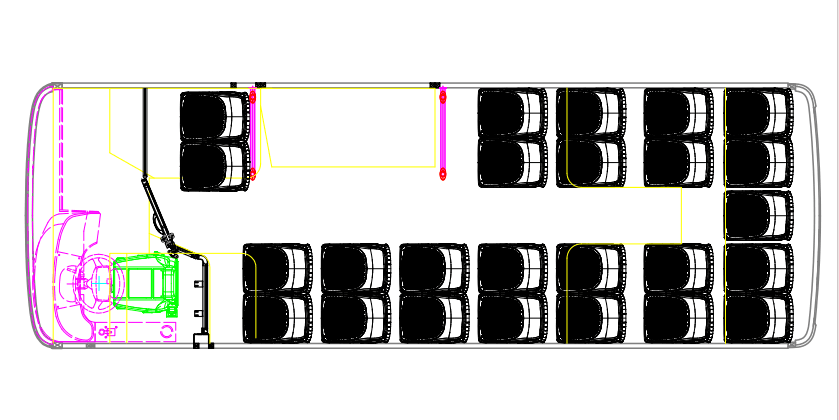

Seat layout diagram
Special announcement There is a conversion period due to the vehicle update and network display, the page graphic parameters may be different from the actual car, the page graphic content does not serve as the basis for the actual booking of the car, the specific models and technical parameters to determine the actual vehicle configuration shall prevail, the intended buyer please contact the Hangtian Lingrui sales staff to confirm in a timely manner, the Hangtian Lingrui to reserve the right to change the parameters of the pictures and the right of final interpretation.
