Models Minibus E-Coaster series HTK6720YBEV
Basic parameters Length x Width x Height (mm) 7225×2240×2940
Wheelbase (mm) 3030
Body structure Full load
Curb weight (kg) 6200
Maximum total mass (kg) 7950
Rated passenger capacity 24-30
Suspension type Leaf spring suspension
Tire specifications 215/70R17.5
Vehicle performance parameters Battery capacity (kWh) 141,water-cooled,CATL
Drive motor power (kW) 80/150
Maximum speed(km/h) ≥100
Minimum turning diameter (m) ≤16
HTK6740Y

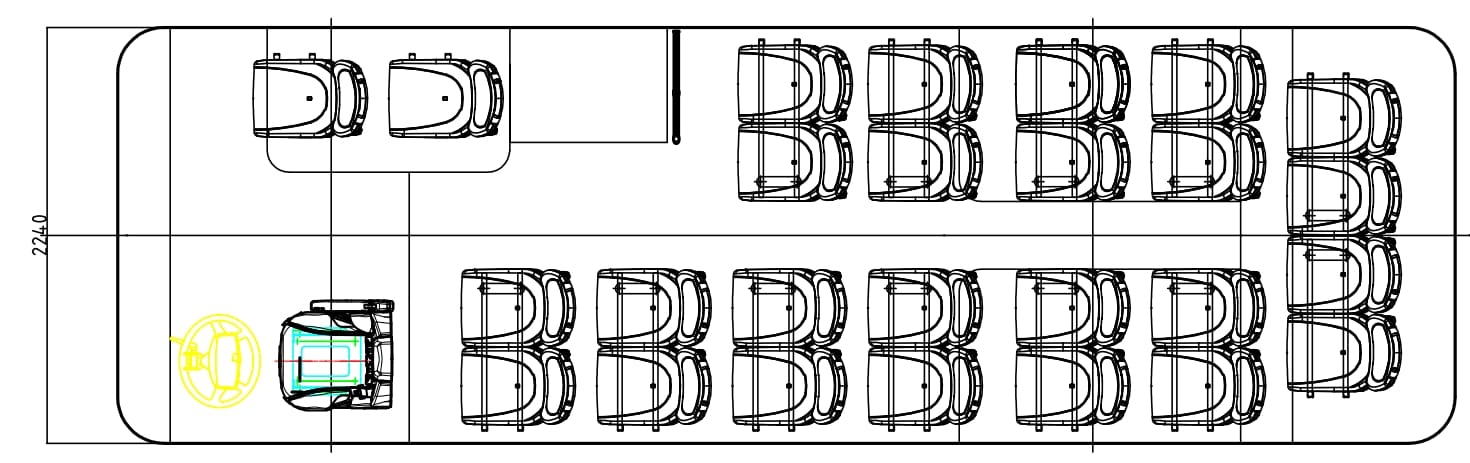

Seat layout diagram
Special announcement There is a conversion period due to the vehicle update and network display, the page graphic parameters may be different from the actual car, the page graphic content does not serve as the basis for the actual booking of the car, the specific models and technical parameters to determine the actual vehicle configuration shall prevail, the intended buyer please contact the Hangtian Lingrui sales staff to confirm in a timely manner, the Hangtian Lingrui to reserve the right to change the parameters of the pictures and the right of final interpretation.
